DRIE silicon etch
Training

For training, please contact the Tool Manager(s).

Additional Restrictions
  • Whole 4 wafers only
  • Thermal / GSI / Oxford Oxide, photoresist, alumina (Al2O3) etch masks ONLY
  • If mask is resist, 5mm of the edge must be removed
  • No metals exposed to the plasma
  • No other polymers or adhesives
  • See tool manager about bonding wafer pieces to carrier
Manager
Backups:
Body

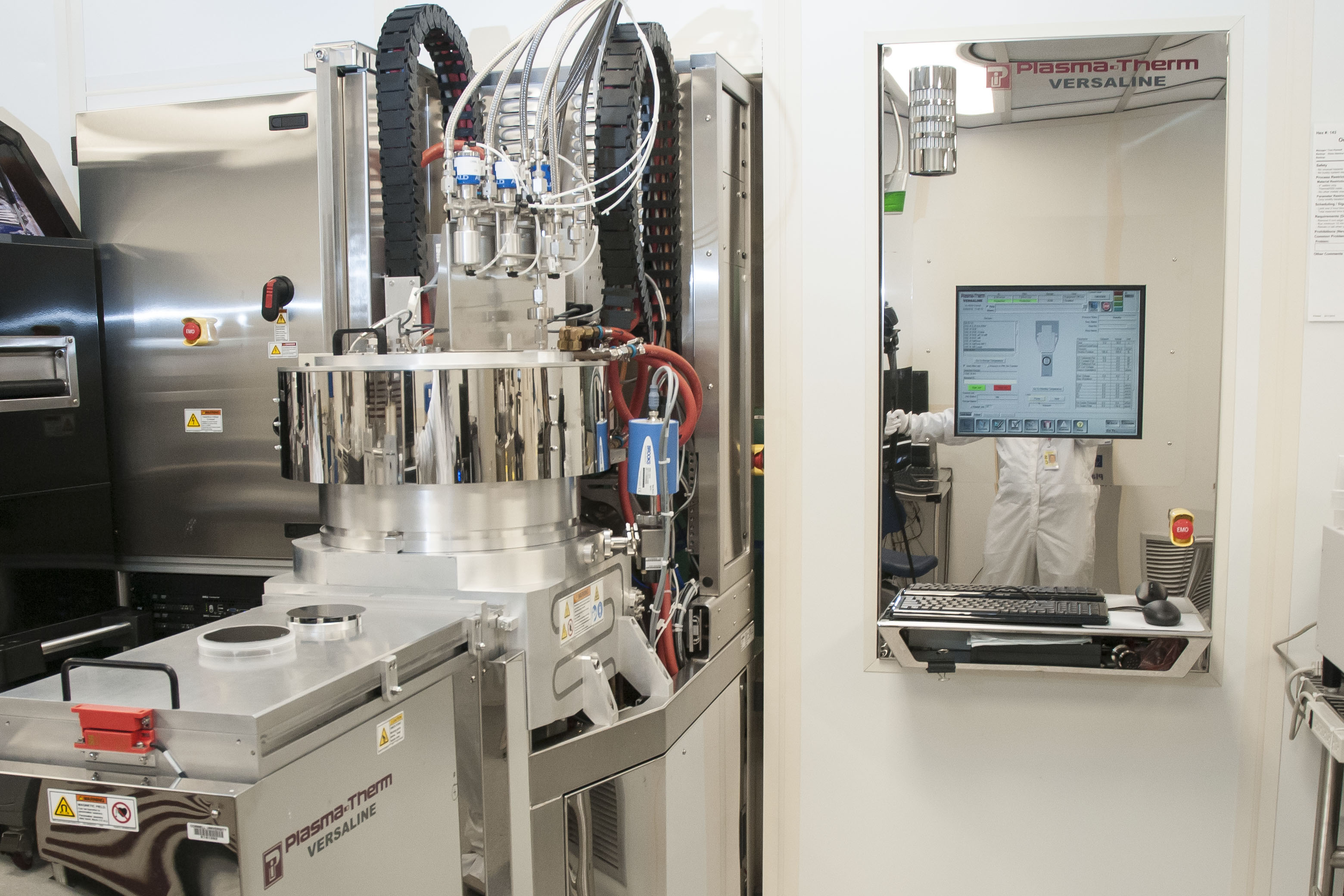

The PlasmaTherm Versaline system is a state of the art tool for DRIE of silicon. It provides the etch precision and process latitude necessary to create next generation nanoscale and MEMS devices. This platform enables sub-second etch and deposition steps producing much smoother sidewalls as scalloping is reduced to a minimum.

Capabilities

The tool is equipped for both 4 and 6-inch wafers, as well as pieces which can be mounted on a handle wafer. It also has a highly sensitive optical emission spectroscopy system (OES) to enable SOI endpoint detection which eliminates notching.

Processes Available

Etching can be done with photoresists, ebeam resists, silicon oxide, and ALD Al2O3 masks. Selectivity to PR is 110:1, oxide selectivity as high as 340:1 and Al2O3 has selectivity ~ 1000:1. Trench aspect ratios of up to 50:1 and isolated line aspect ratios of 200:1 are achievable.

Applications

DRIE is vital to the fabrication of many MEMS devices including microfluidics, RF MEMS, biological MEMS, as well as integrated CMOS structures.
