3D printer of UV curable plastics
Training
Contact the tool manager for training. You are welcome to bring an .STL file of a small device (less than 4 x 4 x 2 cm) to print. Training requires two 30 minute sessions, one to start the printer and one to close down the printer. Print time takes about an hour. Training is offered as needed.
Compatibility:
Additional Restrictions
- Choose from 3 supplied polymers (DurusWhite, VeroClear, or RGD525)
- Use only water with Dawn dish soap to soak devices
- MOS CLEAN furnaces
- Silicon wafers , electronic grade SiC, or pure fused silica/quartz samples only
- No glass substrates, compound semiconductors, etc.
- No resists, polymers, or metals---exposed or unexposed
- Only samples with MOS and PECVD films ar
Manager
Backups:
Body

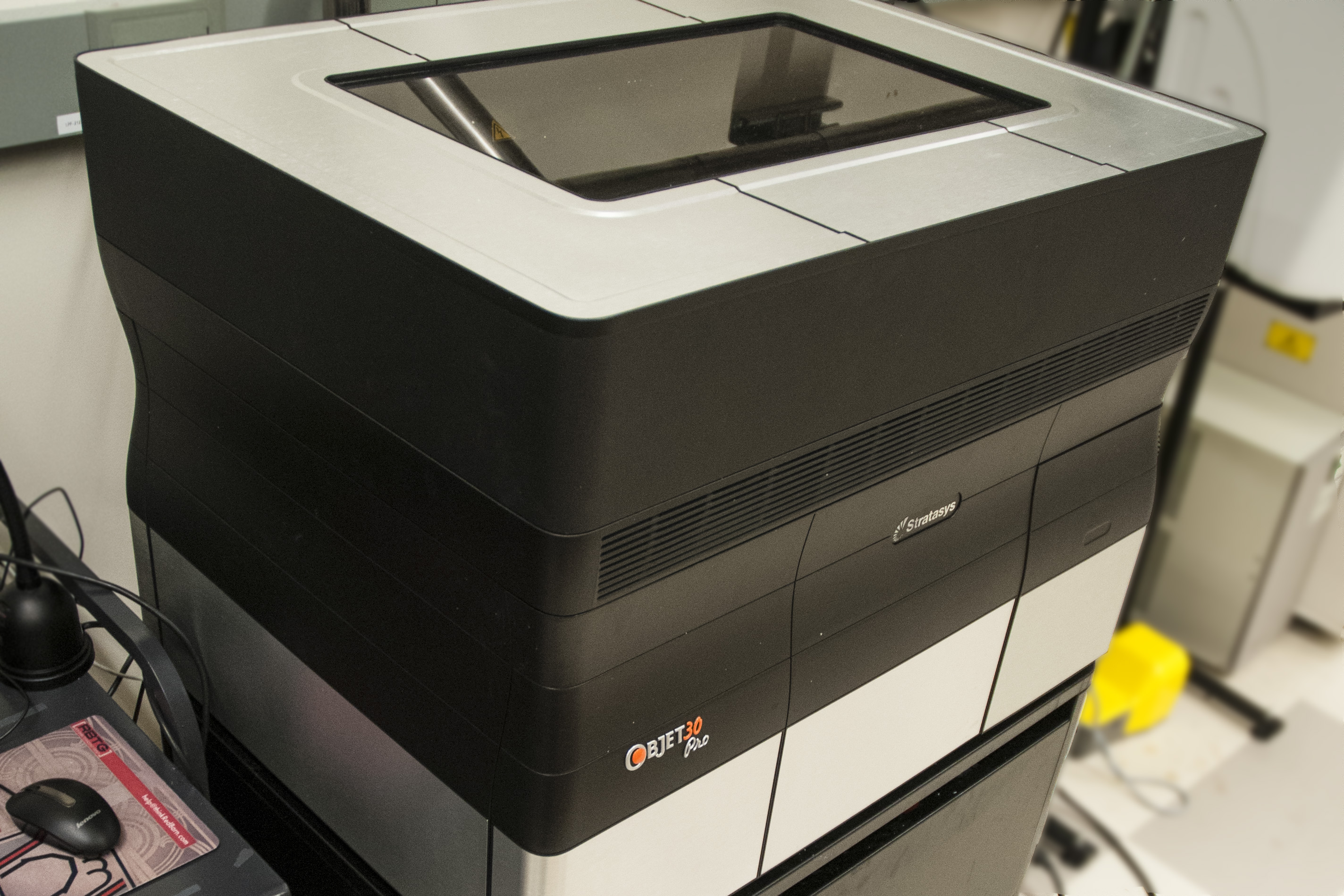

The ObJet30 Pro prints proprietary UV-curable polymers that mimic acrylic or polypropylene. Devices are printed as "slices" or z-steps of 28 microns for most model polymers, or 16 microns for VeroClear. A support polymer is printed in the empty spaces that can be removed by water washing or physical picking. Bring 3D CAD as .STL files. The CNF provides AutoDesk Inventor Professional 2014 in the CAD room.
Capabilities
- Net build size: 294 x 192 x 148.6 mm
- Layer thickness: 28 microns all others OR 16 microns for VeroClear
- Build resolution: X-axis: 600 dpi; Y-axis: 600 dpi; Z-axis: 900 dpi
- Accuracy: 0.1 mm
- may vary depending on part geometry, size, orientation, material and post-processing method
- smallest reproducible features 300 microns
Processes Available
- Model materials avalable
- 4-13-2015 : RGD 525 IS LOADED. ANY MATERIAL MAY BE LOADED.
- Rigid, opaque, white, hi-temp (75 C) RGD525
- Polypropylene-like, opaque, white DurusWhite
- PMMA-like, rigid, clear VeroClear
- Rigid, opaque, black VeroBlackPlus
