Soft Materials Manual probe station

For training, please contact the Tool Manager(s).

Compatibility:
5 - Class A and B Metals and Compounds
Additional Restrictions
  • None
Manager
Phil Infante
Backups:
Jeremy Clark

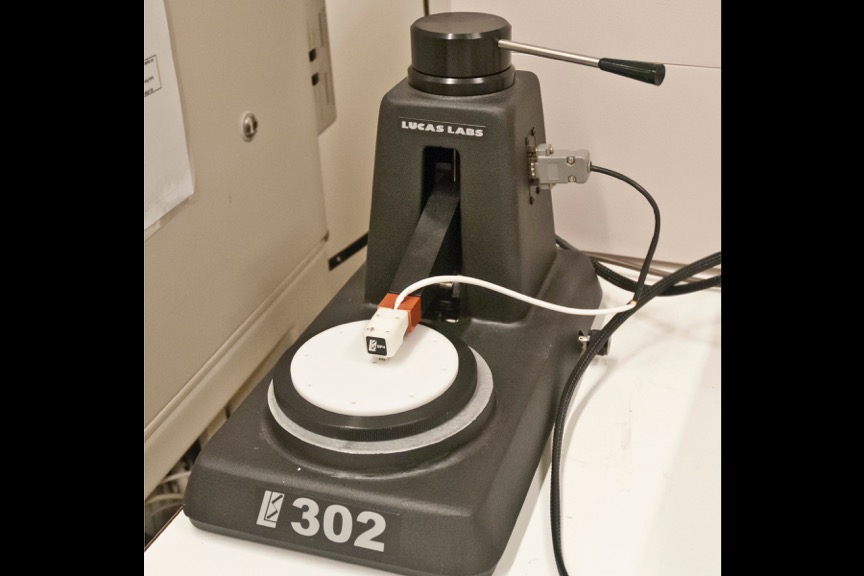

Lucas Labs 4Pt Probe

A Lucas Signatone SP4 4-pt probe and a Keithley 2100 multimeter are provided for measuring the resistivity of for soft films such as conductive polymers.

Capabilities
  • Probe A recommended for substrates greater than 32 mm in diameter
  • 0.0625 in. (1.59 mm) tip spacing
  • 45 g spring pressure (light)
  • Tungten Carbide tips
  • Blunt (0.010 in. dia.) tips
  • Probe B recommended for substrates greater than 20 mm in diameter
  • 0.04 in. (1.016 mm) tip spacing
  • 45 g spring pressure (light)
  • Tungten Carbide tips
  • Blunt (0.010 in. dia.) tips
Applications

Manual measurements on the multimeter can be converted to Resistivty or conductivity using standard equations that are provided in the user manual.

Equipment Information Sheet
